🔋Basic Details

Quantity: 1 unit

MOQ: 1 unit

Delivery Time: 15–20 days

Transportation: By sea, by land

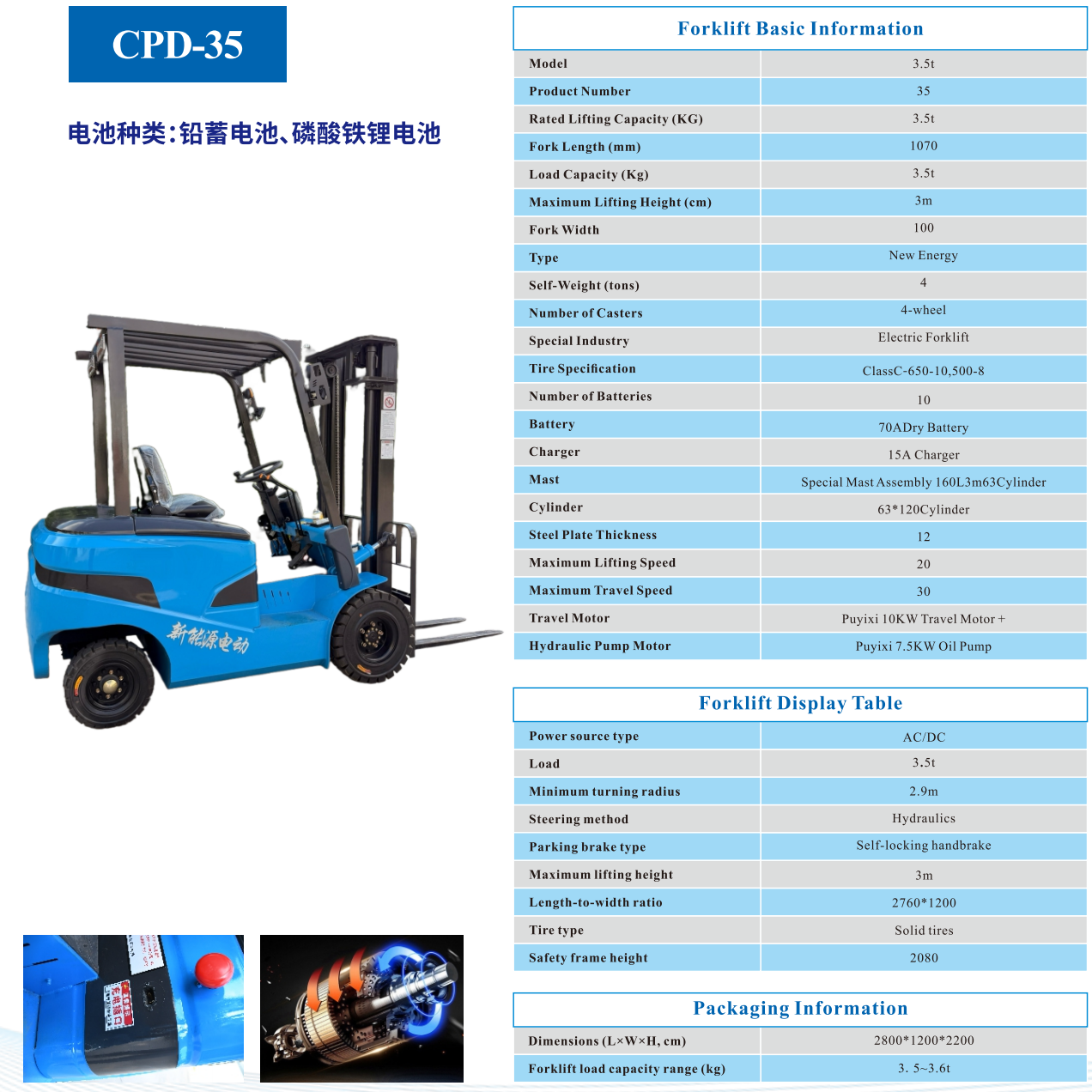

Specification Number:CPD-35

Model: CPD-35

Rated Lifting Capacity: 3.5 tons

Self-Weight: 4 tons

Standard Fork Length: 1070mm

Fork Width: 100mm

Standard Maximum Lifting Height: 3m

Maximum Lifting Speed: 20cm/s

Minimum Turning Radius: 2.9m

Maximum Travel Speed: 30km/h

Power Source: AC/DC

Travel Motor Configuration: Puyixi 10KW Travel Motor

Hydraulic Pump Motor Configuration: Puyixi 7.5KW Oil Pump Motor

Steel Plate Thickness: 12mm

Tire Type: Solid Tires

Safety Frame Height: 2080mm

Package Dimensions (L×W×H): 2800 × 1200 × 2200 mm

Applications: Indoor and outdoor heavy-duty material handling and stacking operations in factories, logistics, warehousing, ports, heavy industry workshops and other scenarios

🔋Product Introduction

Standard High-Performance Lithium Battery, Ultra-Long Endurance with Quality Assurance

1. The full series comes standard with a high-performance lithium battery, with optional lithium iron phosphate battery specifications to further improve endurance and service life. The battery is produced by CATL’s contract manufacturer, with stable and reliable quality, and the range far exceeds similar products of the same level.
2. Multiple battery capacities (150AH, 180AH, 300AH, 400AH) and full series of charger options (15A, 20A, 35A, 45A, 100A, 200A) are available for customization to perfectly adapt to the intensity and duration requirements of different heavy-load operations.

Integrated Body Design, Heavy Load with Agile Maneuverability

1. The wide frame is integrated with the vehicle body, while ensuring the stability of 3.5-ton heavy-load operation, it achieves a minimum turning radius of 2.9m, maintaining excellent maneuverability and passability in narrow aisles and cramped workstations.
2. Equipped with a hydraulic power steering system, the operation is light and labor-saving, which greatly reduces the driver's fatigue during long-time heavy-load operation, and the control is smooth and easy to use.

Heavy-Duty Durable Structure, All-Round Safety Protection

1. The core hydraulic oil hoses are made of high-pressure steel wire, which is corrosion-resistant and wear-resistant, with a service life three times longer than similar products, no leakage risk during long-term heavy-load use, and greatly reducing after-sales maintenance problems.
2. Supported by multiple safety designs: the seat is automatically locked when the operator leaves to eliminate the risk of misoperation; equipped with a self-locking handbrake for safer parking on slopes; the 2080mm height safety guard frame provides all-round protection for the operator.
3. High wear-resistant heavy-duty solid tires adapt to various working conditions such as cement, asphalt, warehouse flooring, and outdoor unpaved roads; the 4-ton whole machine self-weight combined with 12mm thickened steel plate and robust body structure maximizes the stability during full-load heavy-duty operations.

Strong Power Performance, Full-Scene Customized Adaptation

1. Rated load capacity of 3.5 tons, standard maximum lifting height of 3m, optional 4.5m, 4.8m, 5m, 5.2m, 6m three-section mast, maximum travel speed of 30km/h, full-load lifting speed of 20cm/s, delivering outstanding efficiency for large-tonnage material handling.
2. Equipped with Puyixi 10KW high-power travel motor + 7.5KW hydraulic pump motor, providing precise and rapid power response, and maintaining stable and strong power output even under extreme heavy-load conditions such as full load and climbing.
3. Supports a wealth of customization options: fork lengths (1520mm, 1670mm, 1820mm), fork side shift/extension function, mast center cylinder priority design (suitable for container operations), etc., which can be personalized according to the operation scenarios.

Automotive-Grade Craftsmanship, Green and Environmentally Friendly Operation

1. Adopting refined paint technology, customizable exclusive color matching, comparable to automotive-grade coating effect, the product has an outstanding appearance texture and high recognition.
2. Pure electric new energy drive, zero emission, low noise, complying with modern industrial green and low-carbon operation standards, and can be used safely in indoor confined environments.

🔋Product Details

Additional Paid Custom Configurations (Inquire Separately)

Optional fork lengths: 1520mm/1670mm/1820mm

Fork side shift, fork extension/retraction function

Three-section mast, optional lifting heights: 4.5m, 4.8m, 5m, 5.2m, 6m

Mast center cylinder priority design (container-accessible)

More battery options available: 150AH, 180AH, 300AH, 400AH

Optional charger specifications: 15A, 20A, 35A, 45A, 100A, 200A

Other configurations can be customized upon request
