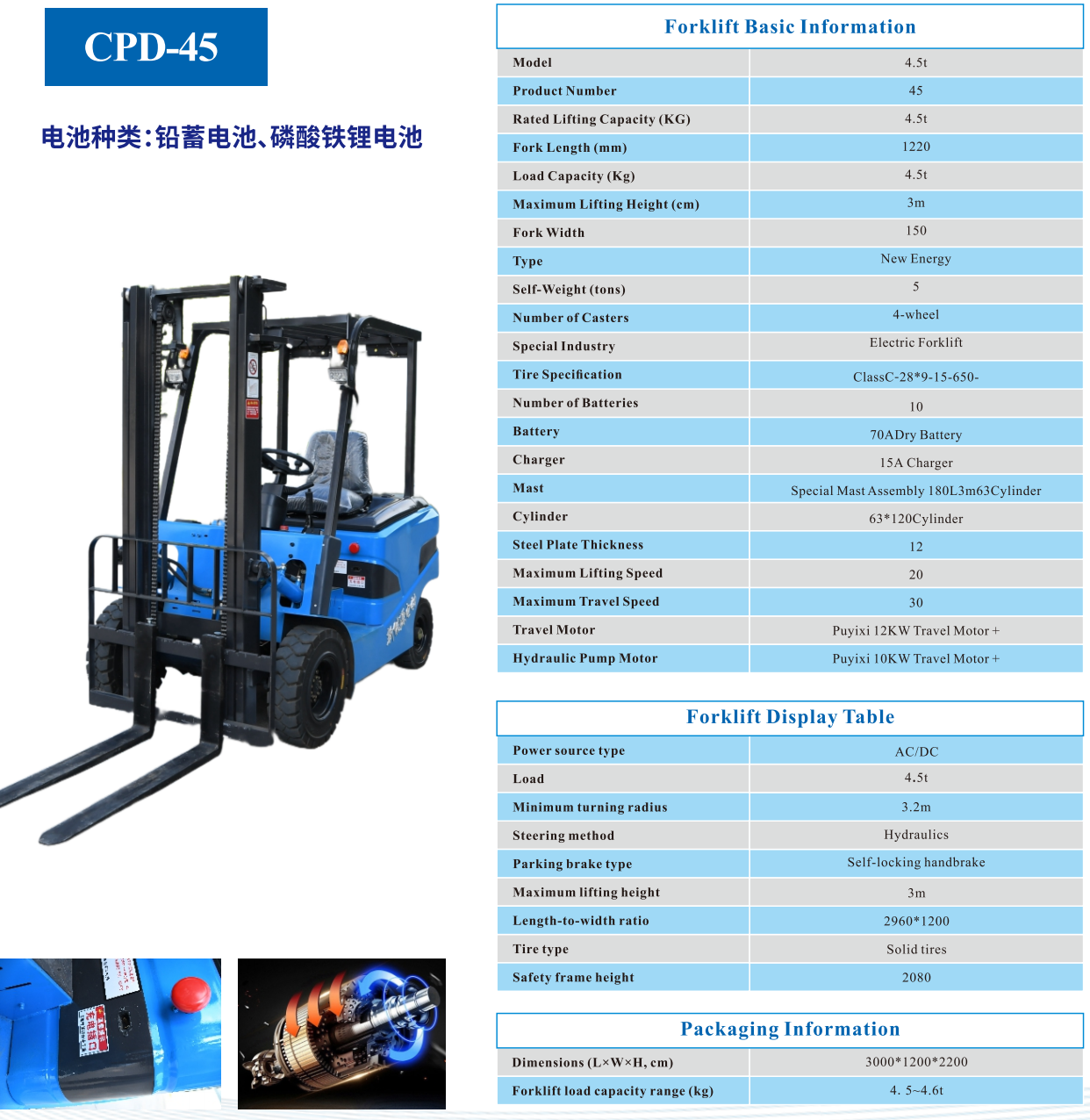

CPD-45 4.5-ton electric counterbalance forklift
4.5-ton ultra-heavy-duty new energy electric forklift, built for high-intensity large-tonnage material handling, heavy industry production, ports and docks, large logistics hubs and other extreme heavy-load operation scenarios, suitable for long-term high-load operations in complex indoor and outdoor working conditions.
Request a quote ↗Configuration, availability, lead time and shipping terms are confirmed in your quotation.
Product information
🔋Basic Details
Quantity: 1 unit
MOQ: 1 unit
Delivery Time: 15–20 days
Transportation: By sea, by land
Model: CPD-45
Rated Lifting Capacity: 4.5 tons
Self-Weight: 5 tons
Standard Fork Length: 1220mm
Fork Width: 150mm
Standard Maximum Lifting Height: 3m
Maximum Lifting Speed: 20cm/s
Minimum Turning Radius: 3.2m
Maximum Travel Speed: 30km/h
Power Source: AC/DC
Travel Motor Configuration: Puyixi 12KW Travel Motor
Hydraulic Pump Motor Configuration: Puyixi 10KW Hydraulic Pump Motor
Steel Plate Thickness: 12mm
Tire Type: Solid Tires
Safety Frame Height: 2080mm
Package Dimensions (L×W×H): 3000 × 1200 × 2200 mm
Applications: Indoor and outdoor ultra-large tonnage heavy-duty material handling and stacking operations in heavy industry workshops, ports, large logistics parks, mining warehousing, etc.
🔋Product Introduction
Standard High-Performance Lithium Battery, Ultra-Long Endurance with Quality Assurance
- The full series comes standard with a high-performance lithium battery, with optional lithium iron phosphate battery specifications to further improve cycle life and heavy-load endurance performance. The battery is produced by CATL’s contract manufacturer, with stable and reliable quality, and the range far exceeds similar products of the same level.
- Multiple battery capacities (150AH, 180AH, 300AH, 400AH) and full series of charger options (15A, 20A, 35A, 45A, 100A, 200A) are available for customization to perfectly adapt to the duration and intensity requirements of high-load heavy-duty operations.
Integrated Body Design, Heavy Load with Agile Maneuverability
- The wide frame is integrated with the vehicle body, while ensuring the stability of 4.5-ton full-load operation, it achieves a minimum turning radius of 3.2m, maintaining excellent maneuverability and passability in narrow aisles and cramped workstations.
- Equipped with a hydraulic power steering system, the operation is light and labor-saving, which greatly reduces the driver's fatigue during long-time heavy-load operation, and the control is smooth and easy to use.
Heavy-Duty Durable Structure, All-Round Safety Protection
- The core hydraulic oil hoses are made of high-pressure steel wire, which is corrosion-resistant and wear-resistant, with a service life three times longer than similar products, no leakage risk during long-term high-load heavy-duty use, and greatly reducing after-sales maintenance problems.
- Supported by multiple safety designs: the seat is automatically locked when the operator leaves to eliminate the risk of misoperation; equipped with a self-locking handbrake for safer parking on slopes; the 2080mm height safety guard frame provides all-round protection for the operator.
- High wear-resistant heavy-duty solid tires adapt to various working conditions such as cement, asphalt, warehouse flooring, and outdoor unpaved roads; the 5-ton whole machine self-weight combined with 12mm thickened steel plate and robust body structure maximizes the overturning resistance and stability during full-load heavy-duty operations.
High-Power Dual-Motor Strong Power, Full-Scene Customized Adaptation
- Rated load capacity of 4.5 tons, standard maximum lifting height of 3m, optional 4.5m, 4.8m, 5m, 5.2m, 6m three-section mast, maximum travel speed of 30km/h, full-load lifting speed of 20cm/s, delivering outstanding efficiency for large-tonnage material handling.
- Equipped with Puyixi high-power dual motors, 12KW travel motor + 10KW hydraulic pump motor, providing precise and rapid power response, and maintaining stable and strong power output even under extreme heavy-load conditions such as full load, climbing, and long-distance transportation.
- Supports a wealth of customization options: fork lengths (1520mm, 1670mm, 1820mm), fork side shift/extension function, mast center cylinder priority design (suitable for container operations), etc., which can be personalized according to the operation scenarios.
Automotive-Grade Craftsmanship, Green and Environmentally Friendly Operation
- Adopting refined paint technology, customizable exclusive color matching, comparable to automotive-grade coating effect, the product has an outstanding appearance texture and high recognition.
- Pure electric new energy drive, zero emission, low noise, complying with modern industrial green and low-carbon operation standards, and can be used safely in indoor confined environments.
🔋Product Details
Additional Paid Custom Configurations (Inquire Separately)
Optional fork lengths: 1520mm/1670mm/1820mm
Fork side shift, fork extension/retraction function
Three-section mast, optional lifting heights: 4.5m, 4.8m, 5m, 5.2m, 6m
Mast center cylinder priority design (container-accessible)
More battery options available: 150AH, 180AH, 300AH, 400AH
Optional charger specifications: 15A, 20A, 35A, 45A, 100A, 200A
Other configurations can be customized upon request
