CPD-50 5.0-ton electric counterbalance forklift
5-ton heavy-duty new energy electric forklift, built for ultra-heavy material handling, heavy industry production, ports, large warehousing hubs and other high-intensity continuous heavy-load operation scenarios, suitable for long-term high-load operations in complex indoor and outdoor working conditions.
Request a quote ↗Configuration, availability, lead time and shipping terms are confirmed in your quotation.
Product information
🔋Basic Details
Quantity: 1 unit
MOQ: 1 unit
Delivery Time: 15–20 days
Transportation: By sea, by land

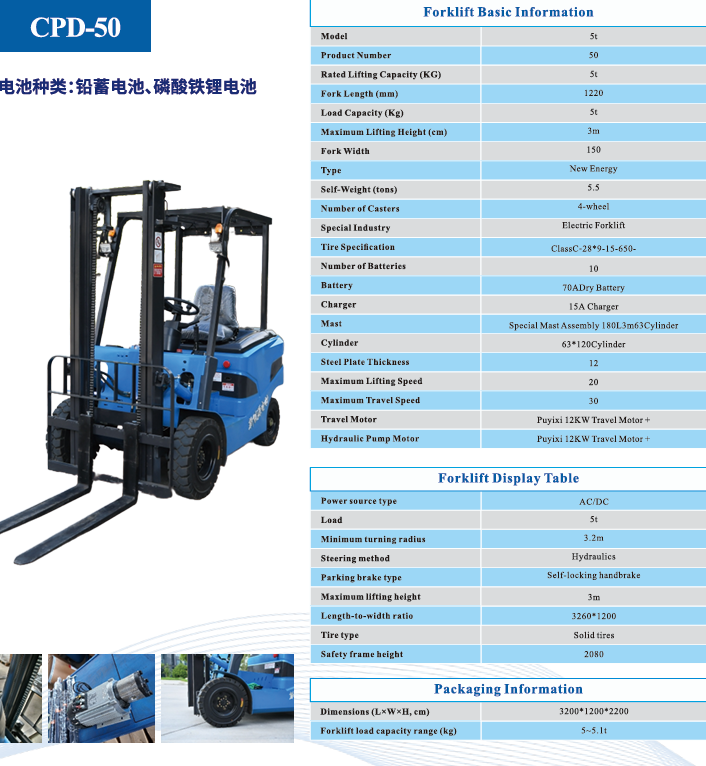

Model: CPD-50
Rated Lifting Capacity: 5 tons
Self-Weight: 5.5 tons
Standard Fork Length: 1220mm
Fork Width: 150mm
Standard Maximum Lifting Height: 3m
Maximum Lifting Speed: 20cm/s
Minimum Turning Radius: 3.2m
Maximum Travel Speed: 30km/h
Power Source: AC/DC
Travel Motor Configuration: Puyixi 12KW Travel Motor
Hydraulic Pump Motor Configuration: Puyixi 12KW Hydraulic Pump Motor
Steel Plate Thickness: 12mm
Tire Type: Solid Tires
Safety Frame Height: 2080mm
Package Dimensions (L×W×H): 3200 × 1200 × 2200 mm
Applications: Indoor and outdoor ultra-heavy-duty material handling and stacking operations in heavy industry workshops, ports, large logistics parks, mining warehousing, etc.
🔋Product Introduction
Additional Paid Custom Configurations (Inquire Separately)
Optional fork lengths: 1520mm/1670mm/1820mm
Fork side shift, fork extension/retraction function
Three-section mast, optional lifting heights: 4.5m, 4.8m, 5m, 5.2m, 6m
Mast center cylinder priority design (container-accessible)
More battery options available: 150AH, 180AH, 300AH, 400AH
Optional charger specifications: 15A, 20A, 35A, 45A, 100A, 200A
Other configurations can be customized upon request
