QLD-20 Standing/2-ton all-electric pallet truckk

🚚 2-Ton Load Capacity, Efficiently Handle Standard Warehouse Operations

The stand-on full-electric pallet truck features a core strength of 2-ton (2000kg) rated load capacity, perfectly meeting the demand for standard pallet cargo transfer in factories, logistics centers, and large warehouses. Compared with manual pallet trucks, its single-load capacity is significantly improved, enabling the one-time handling of heavy goods effortlessly. It reduces the number of loading and unloading operations and lowers operation losses, making it core equipment for achieving "high-load, high-efficiency" circulation in warehouse operations.

⚡ Powerful Power & Dual-Speed Adjustment, Double Circulation Efficiency

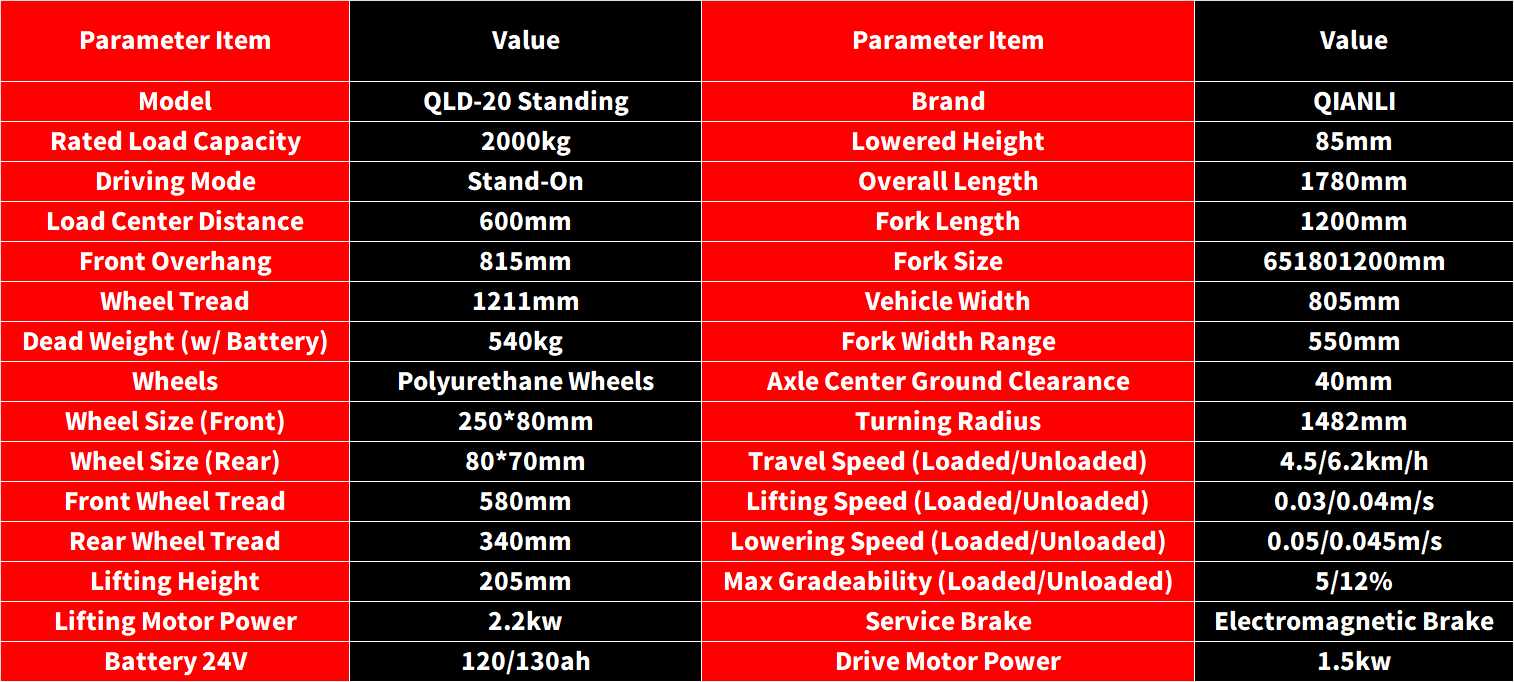

The power system is equipped with a 1.5kw drive motor and a 2.2kw lifting motor, matched with a 24V/120/130ah large-capacity battery to deliver strong and long-lasting power output. In terms of driving performance, the speed reaches 4.5km/h under load and up to 6.2km/h unloaded, significantly improving efficiency during long-distance movement in warehouses; the lifting and lowering speeds are precisely controlled, with 0.03m/s for full-load lifting, 0.04m/s for no-load lifting, and 0.05/0.045m/s for lowering. The smooth and fast actions balance efficiency and safety, greatly shortening the time cost of cargo loading and unloading.

🛞 Comfortable Stand-On Design, Reduce Fatigue During Long-Time Operation

Adopting a stand-on operation design with a floating control handle, the operator can stand comfortably during operation, avoiding fatigue during long-time handling and achieving much higher operation efficiency than walk-behind operation. The stable chassis design of 580mm front wheelbase and 340mm rear wheelbase, combined with the 1211mm wheel tread, ensures the stability of the vehicle when driving under load, effectively suppresses vehicle shaking, and guarantees cargo safety.

⛰️ High Gradeability & Sensitive Braking, Worry-Free Operation Safety

The equipment has strong gradeability, reaching 5% under load and up to 12% unloaded. It easily overcomes slight ramp obstacles and slope obstacles in the warehouse with excellent passability and can complete uphill and downhill operations without additional assistance. For safety, it is equipped with an electromagnetic braking system with sensitive braking response. It automatically parks as soon as the handle is released, effectively eliminating the risk of sliding, ensuring the safety of operators, goods, and equipment, and greatly improving operational safety.

🔋 Long Battery Life & Wear-Resistant Configuration, Reduce Maintenance Costs

The 24V large-capacity battery offers long-lasting battery life, supporting all-day non-stop operation and reducing downtime caused by frequent charging. The whole vehicle is equipped with polyurethane wheels, which have several times higher wear resistance than ordinary nylon wheels. They are impact-resistant and low-noise, with lower loss and longer service life when driving on various floors such as cement and epoxy floors, effectively reducing the later maintenance and replacement costs of the equipment.

🧰 Compact Size & Precise Adaptation, Meet Multi-Scene Needs

The overall body length is 1780mm and the lowered height is only 85mm. The compact size is convenient for transportation, storage, and access to restricted spaces such as elevators. The fork size is 651801200mm with a width of 550mm, adapting to standard pallets; the 40mm ground clearance from the axle center allows easy crossing of slight floor gaps with good passability. Whether it is e-commerce warehouses, manufacturing workshops, or retail warehouses, it can be perfectly adapted, making it a warehouse handling tool integrating efficiency, safety, and comfort.
