🔋Basic Details

1. Quantity: 1 unit
2. MOQ: 1 unit
3. Delivery Time: 15–20 days
4. Transportation: By sea, by land
5. Specification Number:CPD-20

🔋Product Introduction

Reliable Power & Flexible Endurance

1. It comes standard with a lithium battery to significantly extend runtime; the battery is manufactured by CATL, ensuring reliable quality and a range far exceeding that of competing products.
2. Multiple battery capacities (150AH, 180AH, 300AH, 400AH) and charger options (15A, 20A, 35A, 45A, 100A, 200A) are available for customization to meet different operational intensity needs.

Compact Design & Agile Maneuverability

1. Wide frame integrated with the vehicle body, delivering a compact body and a minimum turning radius of only 2.1m for enhanced maneuverability and accessibility in confined spaces.
2. Hydraulic power steering system ensures effortless operation, greatly reducing driver fatigue.

Durable Structure & Enhanced Safety

1. Forks made of high-pressure steel wire, which is corrosion-resistant and wear-resistant, with a service life three times longer than similar products, minimizing after-sales maintenance issues.
2. Upgraded safety design: seat locks when the user exits to prevent accidental operation; self-locking handbrake for secure parking; safety frame height of 2080mm provides all-round operational safety.
3. Solid tires adapt to various ground conditions, and the robust body structure ensures excellent operational stability.

Efficient Performance & Rich Customization

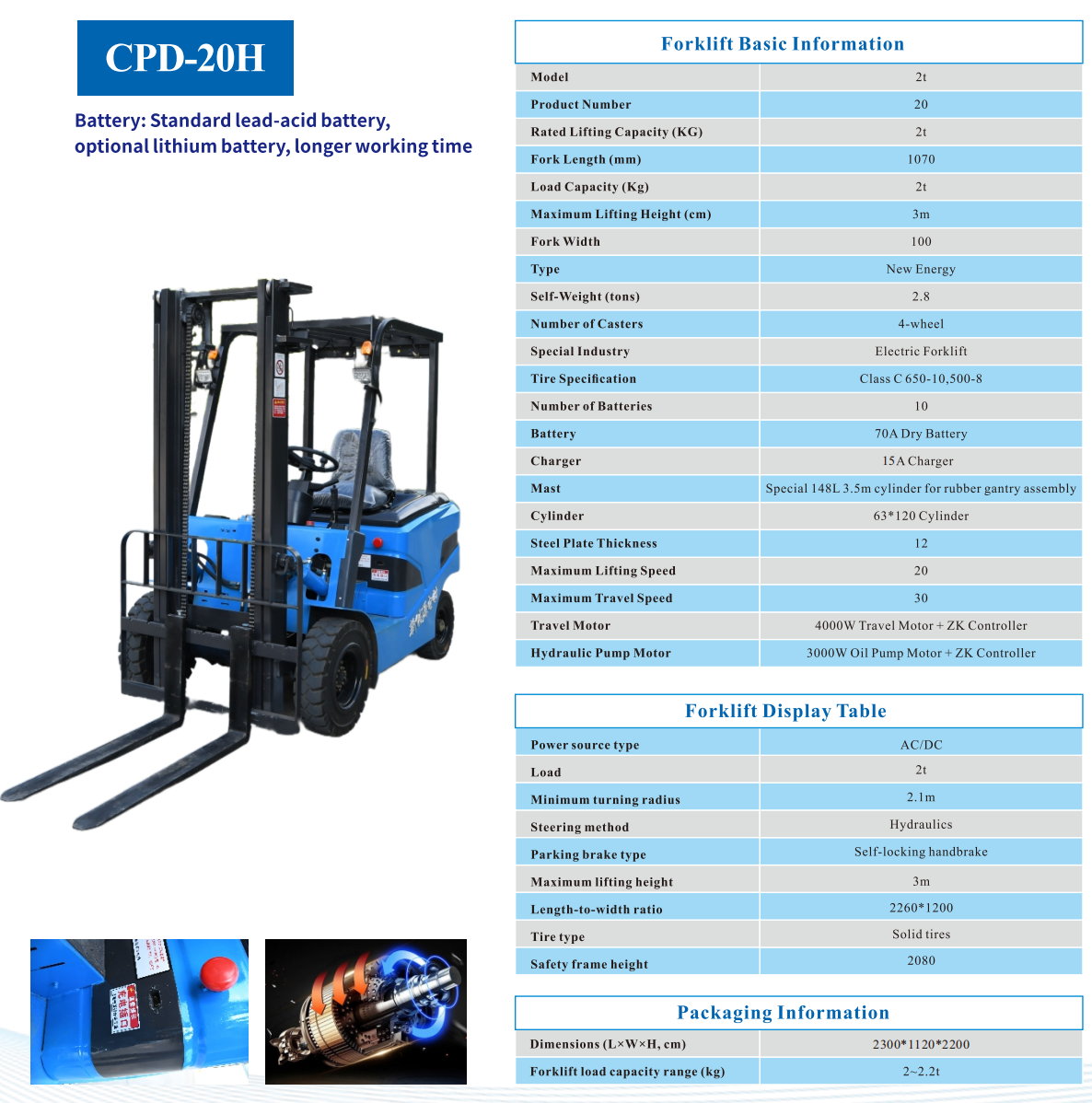

1. Rated load capacity of 2 tons, maximum lifting height of 3m (optional 4.5m, 4.8m, 5m, 5.2m, 6m three-section mast), maximum travel speed of 30km/h, and lifting speed of 20cm/s for efficient and stable operations.
2. 4000W travel motor + 3000W oil pump motor, paired with ZK controllers for precise and reliable power response.
3. Supports rich customization options: fork lengths (1520mm, 1670mm, 1820mm), fork side shift/extension, mast center cylinder priority (container-accessible), etc., to meet personalized operational needs.

Quality Craftsmanship & Environmental Attributes

1. Refined paint finish with customizable colors, comparable to automotive-grade coatings, giving the product a more textured and distinctive appearance.
2. New energy type, environmentally friendly with zero emissions, complying with modern industrial green operation standards.

🔋Product Details

Additional Paid Custom Configurations (Inquire Separately)

Optional fork lengths: 1520mm/1670mm/1820mm

Fork side shift, fork extension/retraction function

Three-section mast, optional lifting heights: 4.5m, 4.8m, 5m, 5.2m, 6m

Mast center cylinder priority design (container-accessible)

More battery options available: 150AH, 180AH, 300AH, 400AH

Optional charger specifications: 15A, 20A, 35A, 45A, 100A, 200A

Other configurations can be customized upon request
